Regular price $3,125.00

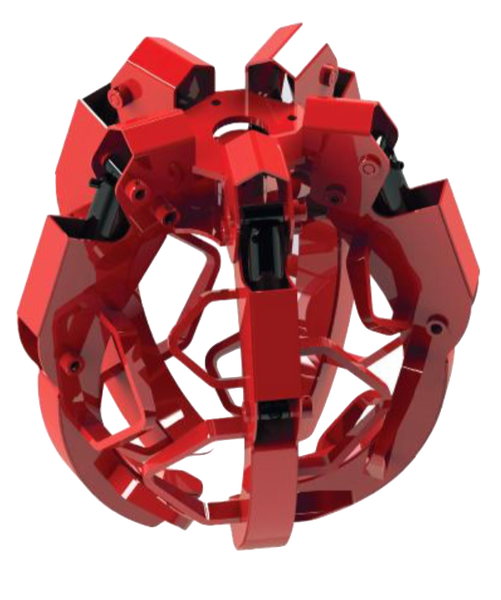

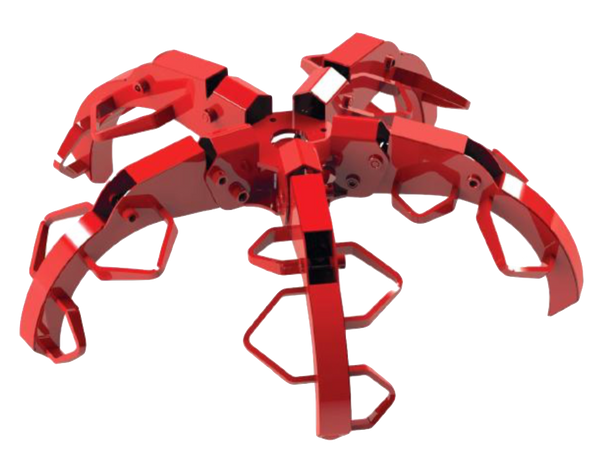

This grapple is specifically designed to grab sawn wood blocks.  The specially designed blades allow for grip while adjusting for the bulky nature of the product.  The blades and teeth are of HARDOX HB400. The use of high quality materials assures longer life with heavy use. The head is covered by a casing integrally removable for easy access to the flexible hose. Hydraulic tubes are mounted inboard and protected from shock. The polyp grabs are painted before assembly so that there are no unpainted and unprotected areas. Grabs are painted with bicomponent painted for high resistance.

 Measurements PLY-W 120/5 PLY-W 290/5 PLY-W 420/5
Tines 5 5 5
Weight lbs 286 672 859
Capacity lt-gal 120-31.70 290-76.61 420-110.95
Max Pressure PSI 4350 4350 4350

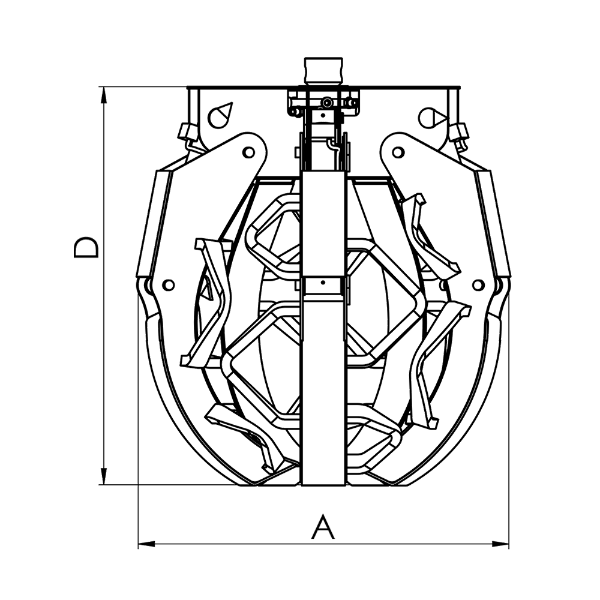

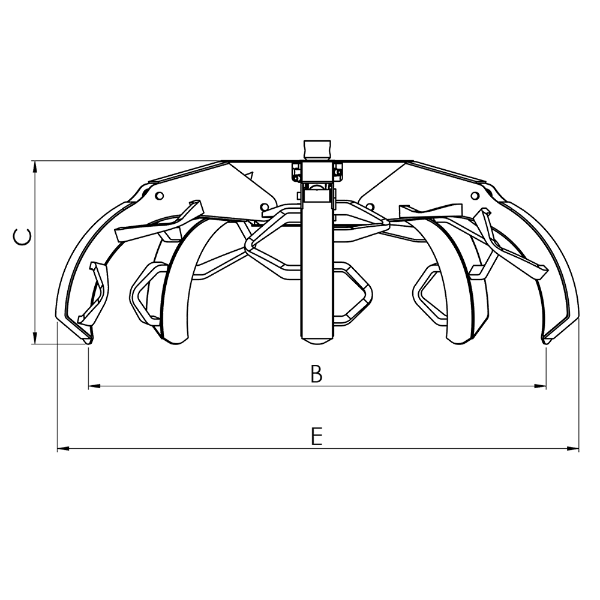

A inches 29.5 38.5 45.2
B inches 55.9 75.5 90.5
C inches 20.8 25.9 28.5
D inches 31.8 43.3 50.3
E inches 61.8 83.4 98.4
