Light Clamshell Bucket- CLA-L
Light Clamshell Bucket- CLA-L
Light Clamshell Bucket- CLA-L
Light Clamshell Bucket- CLA-L
Light Clamshell Bucket- CLA-L

Light Clamshell Bucket- CLA-L

Regular price $1,569.00

Clamshell bucket with horizontal cylinder for loading and unloading of light weight material.

 Measure CLA-L 35 CLA-L 50 CLA-L 90 CLA-L 125 CLA-L 155 CLA-L 175
Weight lbs 66 110 176 286 308 330
Capacity lt-gal 35- 9.25 50- 13.21 90- 23.78 125- 33.02 155- 40.95 175- 46.23
Max Pressure psi 2900 2900 2900 2900 2900

2900

A inches 17.9 24.6 29.9 33.0 33.0

33.0

B inches 24.5 35.2 43.3 47.2 47.2

47.2

C inches 14.0 19.3 23.0 25.9 25.9

25.9

D inches 11.9 15.3 19.6 20.5 20.5

20.5

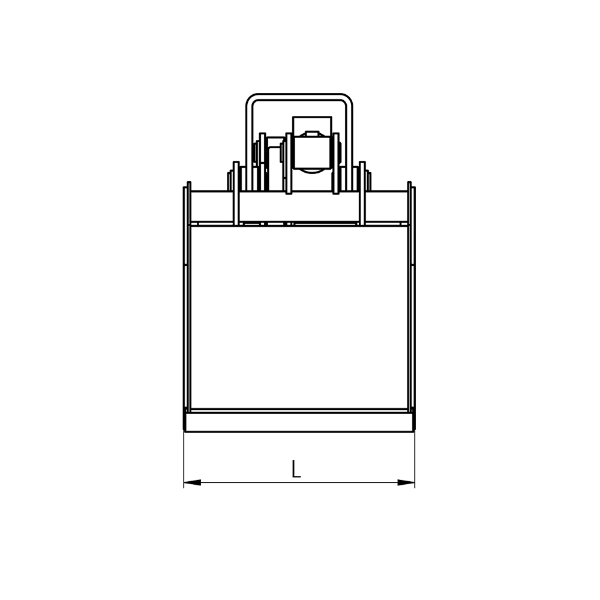

L inches 12.0 12.9 13.7 17.7 21.6

25.5



 Measure CLA-L 205 CLA-L 225 CLA-L 320 CLA-L 360 CLA-L 400
Weight lbs 352 379 451 489 507
Capacity lt-gal 205- 54.16 225- 95.44 320- 84.54 360- 95.10 400- 105.67
Max Pressure psi 2900 2900 2900 2900 2900
A inches 33.0 33.0 40.9 40.9 40.9
B inches 47.2 47.2 56.3 56.3 56.3
C inches 25.9 25.9 30.7 30.7 30.7
D inches 20.5 20.5 22.2 22.2 22.2
L inches 29.5 33.4 31.5 35.4 19.3
