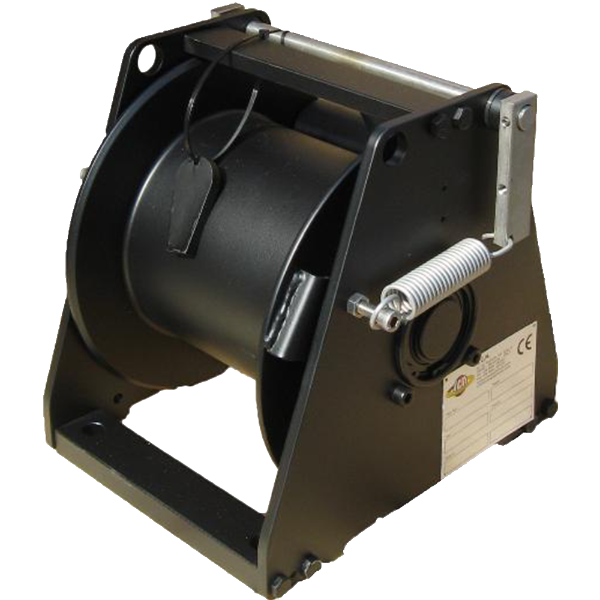

Hyrdaulic Hoisting Winches- WN
Hyrdaulic Hoisting Winches- WN
Hyrdaulic Hoisting Winches- WN

Hyrdaulic Hoisting Winches- WN

Regular price $4,726.00

Epicycloidal reduction allows the hoisting winches to be able to lift every load in a fluid and safe way. The main characteristic of our hoisting winches is the reduction group and oil brake bath for long life. Internal motor drain avoids running an additional return line to the tank. Thanks to the structure of our hoisting winches and the use of special sealing and painting they can be used in a marine environment.

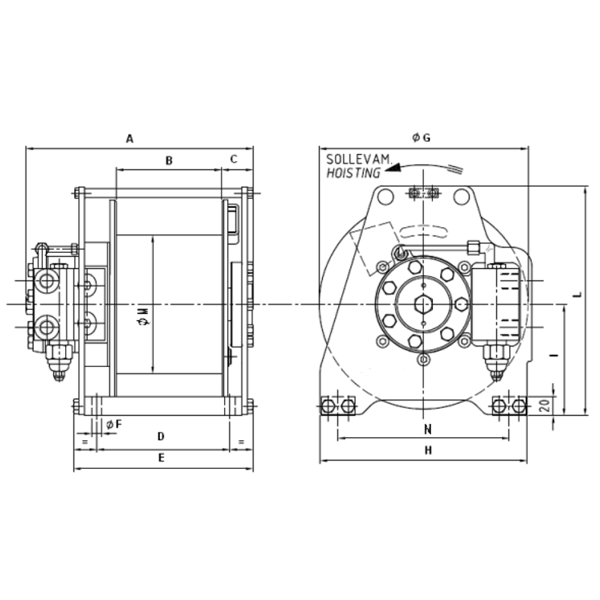

  WN 500 WN 1000 WN 2000 WN 2500 WN 4600
A inches 9.4 10.8 13.1 14.2 17.3
B inches 104.3 6.8 7.3 7.5 9.1
C inches 1.3 1.5 1.7 2.3 2.3
D inches 5.5 6.7 6.7 7.4 9.6
E inches 7.4 9.2 10.2 10.6 13.2
F inches 0.43 0.59 0.59 0.67 0.75
G inches 8.6 10.1 12.2 14.8 16.1
H inches 8.5 11.6 12.4 15.9 16.9
I inches 4.6 5.23 6.9 7.6 8.2
L inches 9.5 11.0 13.8 15.9 17.3
M inches 5.7 6.5 7.9 9.56 9.6
N inches 7.1 9.8 9.8 13.7 14.1
First Layer Pull Lbs 1100 2200 4400 5510 10140
Last Layer Pull Lbs 840 1740 3430 4300 7650
Layers (n degree) 4 4 4 4 4
Cable inches 0.24 0.31 0.39 0.47 0.47
Max Cable feet 118.1 164.0 173.8 177.1 190.2
First Layer Speed ft/min 137.8 124.6 111.5 95.1 72.1
Lifting Pressure PSI 2540 2540 2900 2975 2685
Max Flow gal/min 6.6 10.5 13.2 13.2 19.8
Weight Lbs 55 90 156 209 297
