MS 400 Hydraulic Chain Saw. Optional 2 or 3 Circuit Packages

Regular price $5,740.00
 Package Components

MS 400 $5740

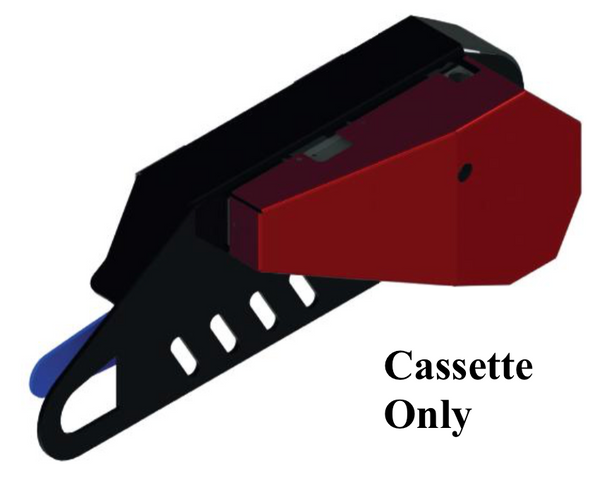

Cassette Only Weight 105 lbs

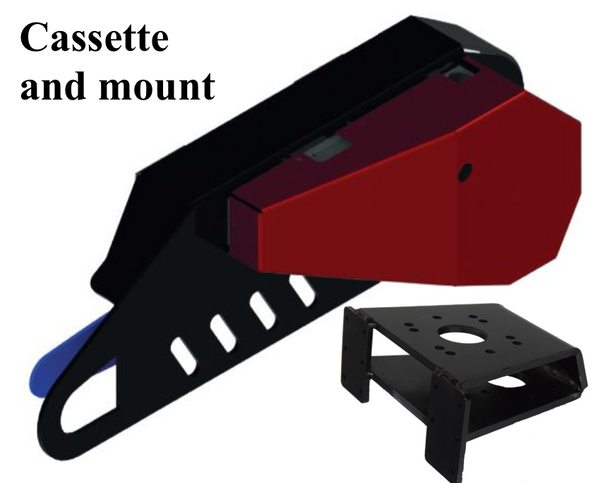

MS 400 with Mount $6490

Cassette and Adaptor Mount (MSM 1)
MS 400 2 Circuit Package $11,850

Cassette, Mount, GRA-M 21, R7CFF Rotator, Valves, Fittings and Hoses for 2 Circuit Machine, Toolkit with 2 extra saw blades and 2 extra chains

MS 400 3 Circuit Package $11,360 Cassette, Mount, GRA-M 21, R7CFS Rotator, Valves, Fittings and Hoses for 3 Circuit MachineToolkit with 2 extra saw blades and 2 extra chains

See below for more details

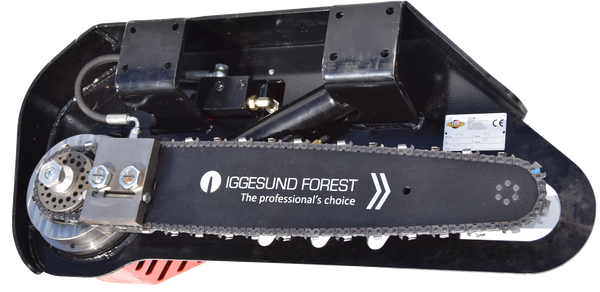

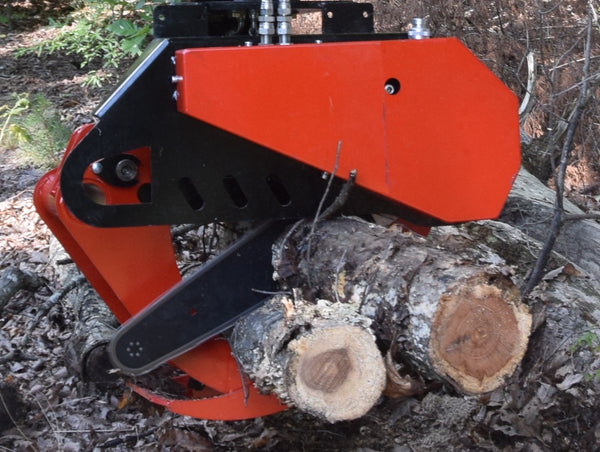

Quick and lightweight this grapple can tackle most brush and small timber clearing jobs. It has a mechanical chain tensioner and a 404” pitch chain.  This grapple saw is recommended for use with the GRA-M 21 grapple.

MS 400 Cassette Dimensions
 Max Diameter Cut 15.75”
Weight 105 lbs
Min Oil Flow 15 gpm
Max Pressure 3600 psi



The chainsaw requires an additional flanged support arm to be attached to the log grapple, the MSM 1 Hydraulic Chainsaw Mount Bracket. This support rests below the rotator and allows the saw to function without limiting the use of the log grapple. The matching support and chainsaw cassette can be purchased as a set with the MS 400 w mount package.

Two installation options are available: 2 Circuit and 3 Circuit.  Please refer to our Pages section to determine your requirements.

2 Circuit Package (MS 400-2) includes

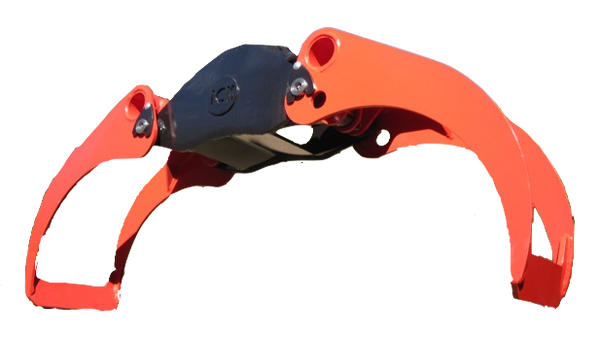

  • GRA-M 21 Log Grapple
  • R7CFS 4 Port Hydraulic Rotator
  • MS 400 Hydraulic Chainsaw Cassette
  • MSM 1 Hydraulic Chainsaw Mount Bracket
  • Toolkit including 2 extra saw blades and 2 extra chains
  • Hoses, Fittings and Valves for 2 Circuit IPackage
    • Valves to activate the saw
    • All hoses up to the rotator
  • Does not included installation. Customer is responsible for attaching the hoses from rotator to the customer’s equipment (not provided).

3 Circuit Package (MS 400-3) includes

  • GRA-M 21 Log Grapple
  • R7CFF 6 Port Hydraulic Rotator
  • MS 400 Hydraulic Chainsaw Cassette
  • MSM 1 Hydraulic Chainsaw Mount Bracket
  • Toolkit including 2 extra saw blades and 2 extra chains
  • Hoses,fittings and valves for 3 circuit package up to the rotator
  • Does not include installation to the customer’s machine.  The customer is responsible for attaching the hoses to the rotator from the customer’s equipment (not provided).
