Conical Pad- GPA
Conical Pad- GPA
Conical Pad- GPA

Conical Pad- GPA

Regular price $185.00

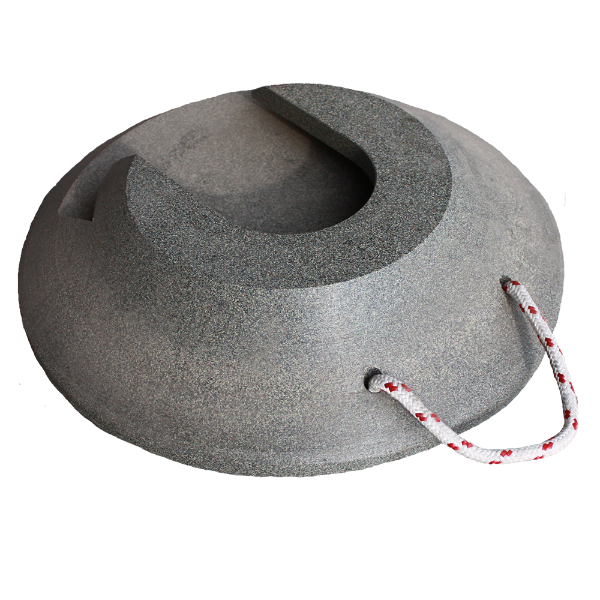

Conical pad with base cut out for stabilizer posts.

 Measure GPA 3.8 GPA 4.8 GPA 5.8 GPA 6.8
Weight lbs 8.5 13.0 22.0 28.5
Load Capacity lbs 22045 24250 33065 59520
A inches 4.7 4.7 4.7 4.7
B inches 7.8 7.8 9.8 9.8
C inches 1.1 1.1 1.1 1.1
D inches 11.8 15.7 19.6 23.6
E inches 1.3 1.3 1.1 1.1
H inches 3.1 3.1 3.1 3.1
Cranes ton 5 - 20 20 - 30 25 - 50 50 - 85
